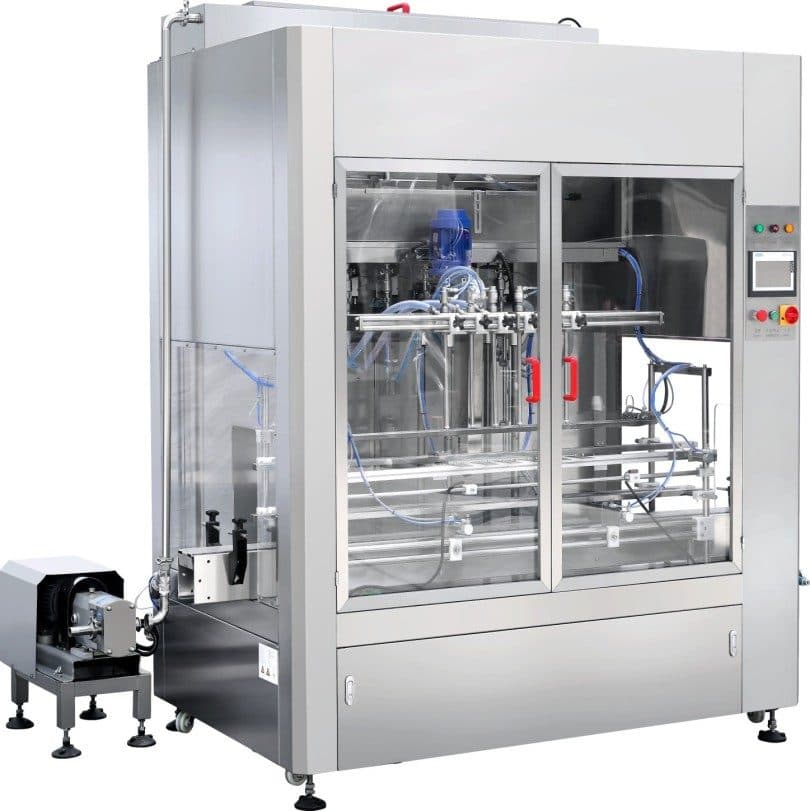

Automatic Six-Nozzle Filling Machine (Rotary Lobe Pump)
Designed for medium and low viscosity liquid filling, especially viscid and foamy products in food, chemical, cosmetic and medical industries. SUS#304 + aluminum-alloy construction, Mitsubishi PLC with Pro-Face touch screen, volumetric rotary-lobe-pump filling driven by AC motors with inverters; 20 memory groups for time/parameters.
Rotary lobe pump volumetric filling
Handles viscid & foamy products
SUS#304 + aluminum-alloy build
Mitsubishi PLC + Pro-Face HMI
| Dimension | 2500(L) x 1700(W) x 2300(H) mm |
| PLC / HMI | Mitsubishi PLC + Pro-Face touch screen |
| Air source | 0.5-0.65 MPa |
| Bottle width | 140-260 mm |
| Power supply | 220V/380V, 50Hz; host 3 KW |
| applications | Food, Chemical, Cosmetic, Pharmaceutical viscous liquids, 5-50L pails |
| Bottle height | 250-500 mm |
| Bottle length | 160-360 mm |
| Filling error | +/-15 ml |
| Filling heads | 4 / 6 / 8 / 10 |
| Filling range | 250-5000 ml |
| Package range | 5 L - 50 L |
| Bottle mouth dia. | >= D40 mm |
| Production capacity | <=480 bottles/h (water tested) |
