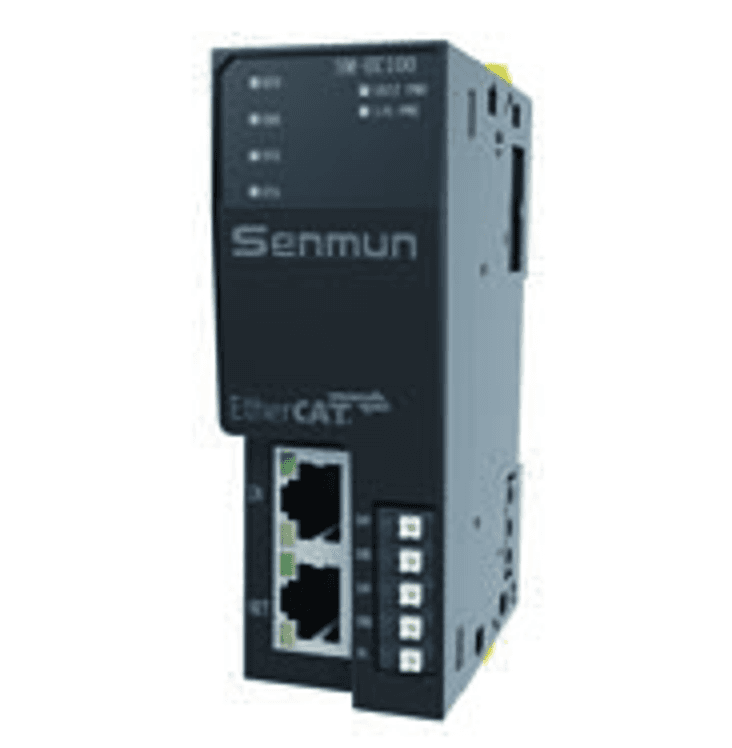

SM-EC100 EtherCAT Bus I/O Adapter
SENMUN SM-EC100 EtherCAT adapter connects up to 32 modular I/O submodules, supports 100 Mbps/100 m Ethernet communication, and provides 1024-byte input and output data with LED diagnostics.
Native EtherCAT connectivity for modular card-type bus I/O
Supports up to 32 I/O submodules
1024-byte input and 1024-byte output process data capacity
Visual diagnostics through master software and LED indicators
| Bus speed | 100 Mbps |
| Dimensions | 96 x 66 x 34 mm |
| Programmable | No |
| applications | Distributed I/O systems, industrial automation control cabinets, machine automation, production-line control |
| Power protection | Overcurrent, reverse-polarity and surge protection |
| Relative humidity | 90% RH, non-condensing |
| Ingress protection | IP20 |
| Process data input | 1024 bytes |
| Supported protocol | EtherCAT |
| Process data output | 1024 bytes |
| Storage temperature | -20 to 75 °C |
| Transmission medium | Category 5 or higher Ethernet cable |
| Operating temperature | -10 to 60 °C |
| Transmission distance | 100 m station-to-station |
| Diagnostics and alarms | Master software and LED indicators |
| System-side power input | DC 24 V (18-36 V) |
| Supported I/O submodules | 32 max. |
| I/O-port-side power input | 24 V DC (±20%) |
| System-side supply current | 2 A max. |
| I/O-port-side output current | 10 A max. |
