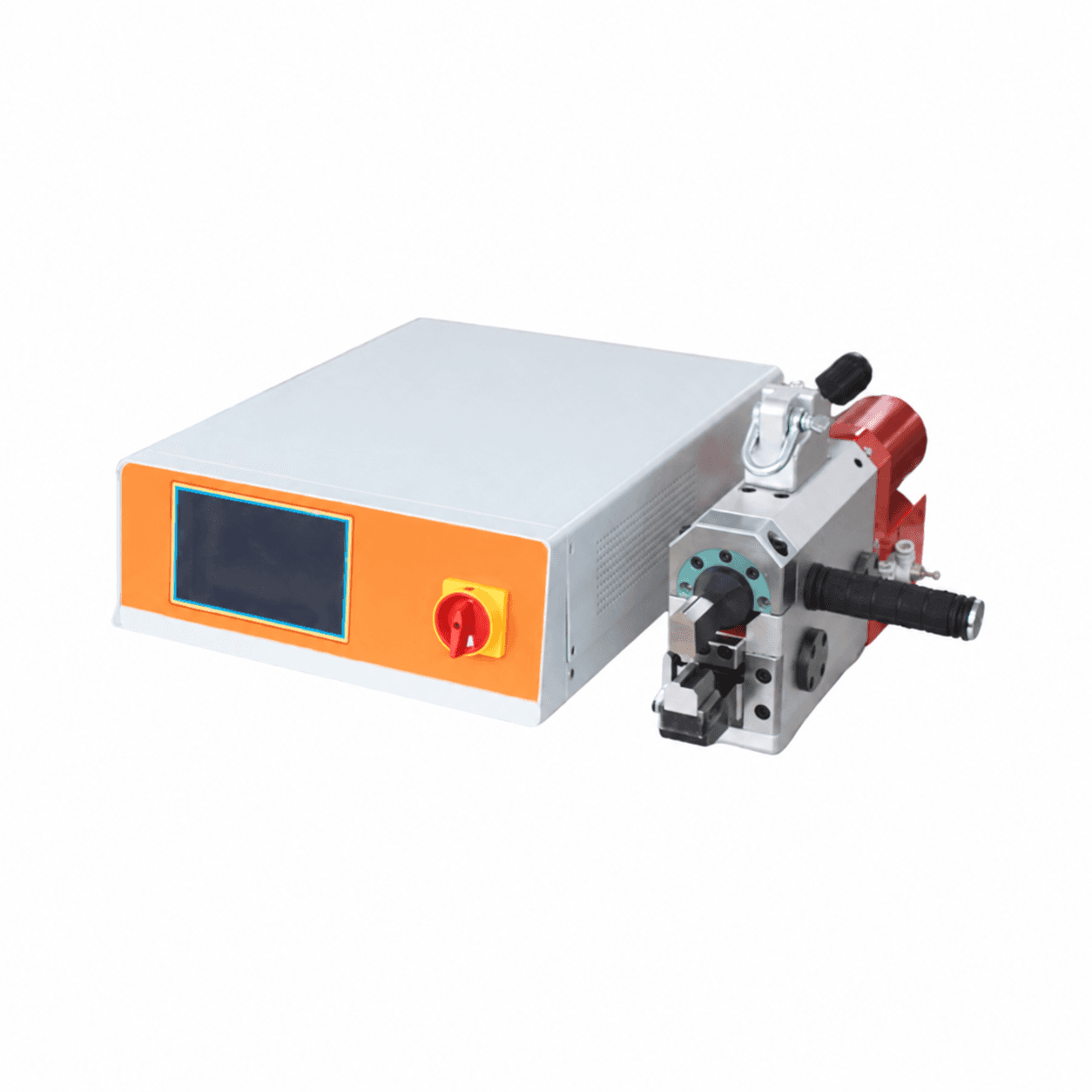

Ultrasonic Metal Tube Sealing Machine (2000W)
Ultrasonic machine for sealing and cutting copper or aluminium tubes in refrigeration charging lines, temperature-sensor capillaries and related applications. LUNA supports application assessment, equipment matching and delivery coordination. Source equipment model: HST2020C. Confirm tube compatibility and sealing results through application trials. Images show the source equipment configuration. Warranty and service scope follow the agreed contract.

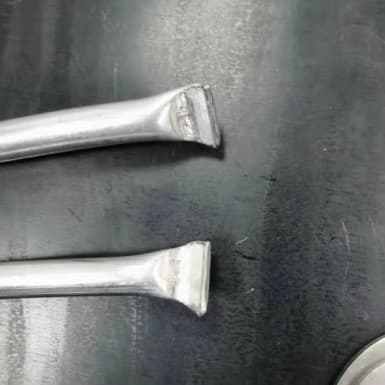

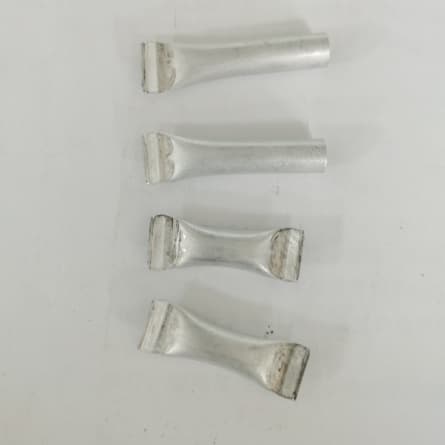

Sealing and cutting in one process

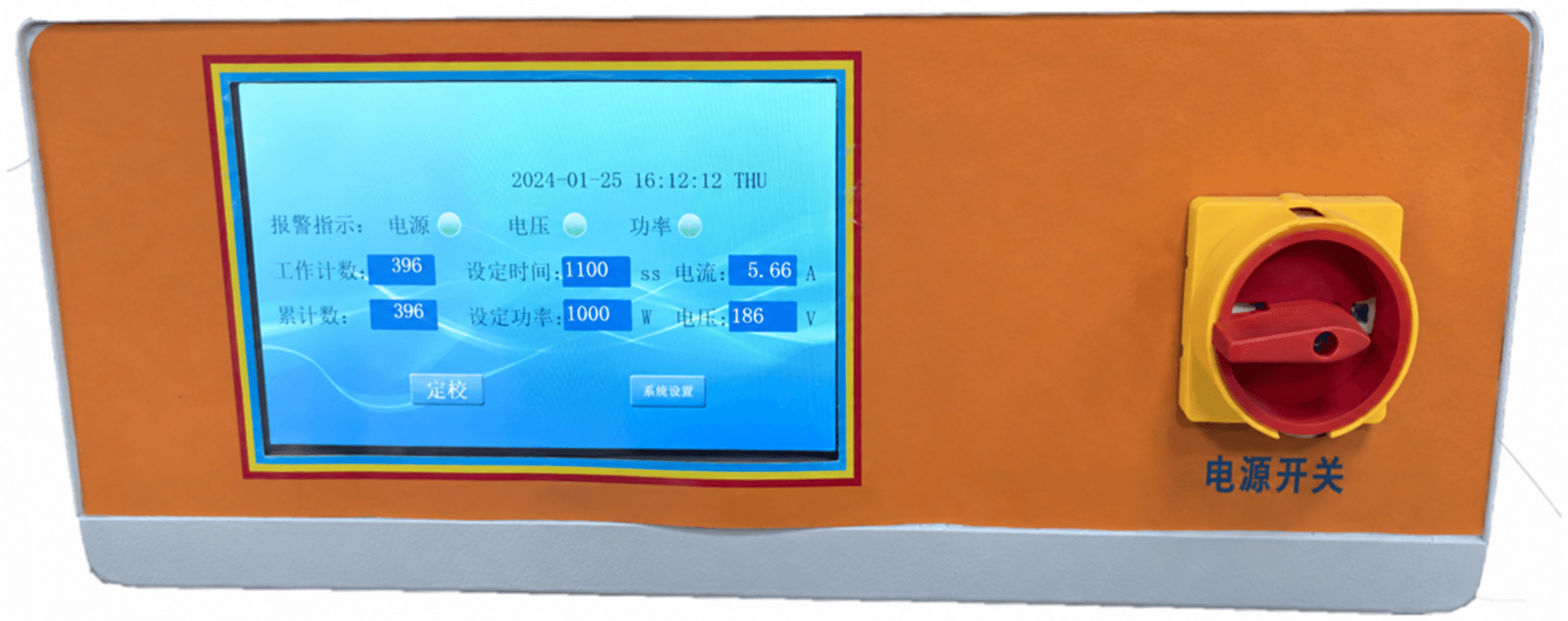

Adjustable welding power and time
Constant-power digital supply with PLL technology
Software protection for current, voltage, impedance, communication errors, excessive power and timeout
| Frequency | 20 kHz |
| Output power | 2000 W |
| Source model | HST2020C |
| applications | Refrigeration charging tubes, temperature-sensor capillaries, copper and aluminium tube sealing |
| Input voltage | 220 V |
| Tube material | Copper, aluminium |
| Wall thickness | 0.2-1 mm |
| Machine dimensions | 450 x 240 x 100 mm |
| Hardware protection | 35 A |
| Equipment net weight | 15 kg |
| Generator dimensions | 500 x 400 x 180 mm |
| Working air pressure | 0.4-0.7 MPa |
| Tube outside diameter | 0.5-10 mm |
